Create XML in a Script

There are several techniques to create an XML document in a Personalized Script for Lawson Smart Office. The programming language is JScript.NET.

1) XElement

Here’s an example with LINQ’s XElement :

import System;
import System.Xml.Linq;

package MForms.JScript {
     class Test {
         public function Init(element: Object, args: Object, controller : Object, debug : Object) {
             var x: XElement = new XElement('hello',
                 new XAttribute('id', 'message'),
                 new XElement('world', 'Hello World!'));
             debug.WriteLine(x.ToString());
         }
     }
 }

It produces the following XML:

<hello id="message">
  <world>Hello World!</world>
</hello>

Here’s a screenshot of the result:

2) XmlDocument

Here’s an example with XmlDocument:

import System;
import System.Xml;

package MForms.JScript {
     class Test {
         public function Init(element: Object, args: Object, controller : Object, debug : Object) {
             var doc: XmlDocument = new XmlDocument();
             var dec: XmlDeclaration = doc.CreateXmlDeclaration('1.0', null, null);
             doc.AppendChild(dec);
             var root: XmlElement = doc.CreateElement('hello');
             doc.AppendChild(root);
             var child: XmlElement = doc.CreateElement('world');
             child.SetAttribute('id', 'message');
             child.InnerText = 'Hello World!';
             root.AppendChild(child);
             debug.WriteLine(doc.OuterXml);
         }
     }
}

It produces the following XML:

<?xml version="1.0"?><hello><world id="message">Hello World!</world></hello>

Here’s a screenshot of the result:

3) XmlWriter

And here’s an example with XmlWriter:

import System;
import System.Xml;
import System.Text;

package MForms.JScript {
     class Test {
         public function Init(element: Object, args: Object, controller : Object, debug : Object) {
             var s: StringBuilder = new StringBuilder('');
             var writer: XmlWriter = XmlWriter.Create(s);
             writer.WriteStartDocument();
             writer.WriteStartElement('hello');
             writer.WriteAttributeString('id', 'message');
             writer.WriteElementString('world', 'Hello World');
             writer.WriteEndElement();
             writer.WriteEndDocument();
             writer.Flush();
             debug.WriteLine(s);
         }
     }
}

It produces the following XML:

<?xml version="1.0" encoding="utf-16"?><hello id="message"><world>Hello World</world></hello>

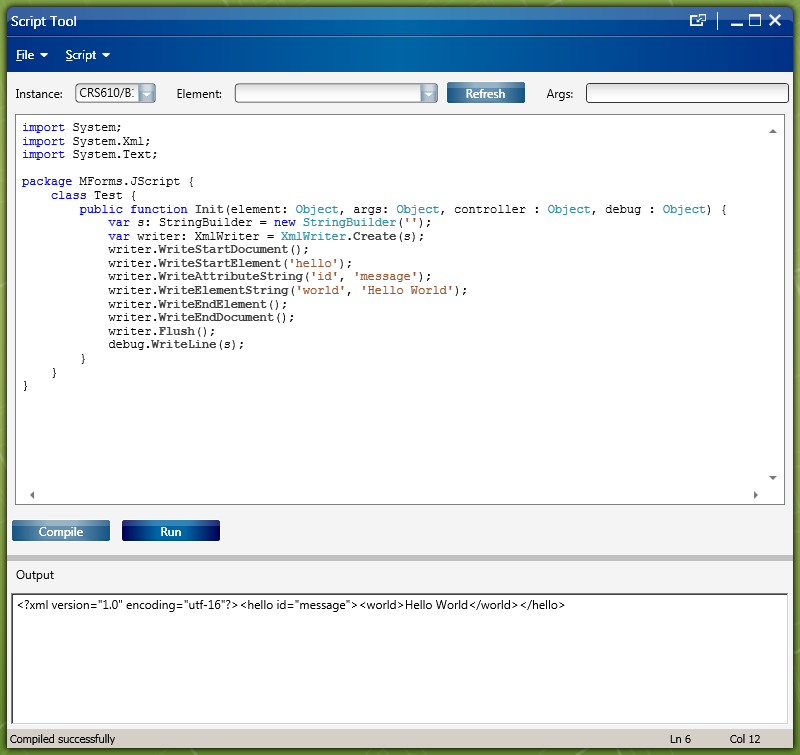

Here’s a screenshot of the result:

4) XmlSerializer

Here’s an example with XmlSerializer:

import System.Text;
import System.Xml;
import System.Xml.Serialization;

package MForms.JScript {
     class Test {
         public function Init(element: Object, args: Object, controller : Object, debug : Object) {
             var o = new Hello();
             var s = new XmlSerializer(o.GetType(), 'thibaudns');
             var b: StringBuilder = new StringBuilder('');
              var writer: XmlWriter = XmlWriter.Create(b);
             s.Serialize(writer, o);
             debug.WriteLine(b);
         }
     }
     class Hello {
         var World: String = 'Hello World!';
     }
}

It produces the following XML:

<?xml version="1.0" encoding="utf-16"?>
<Hello xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="thibaudns">
<World>Hello World!</World>
</Hello>

Here’s a screenshot of the result:

Discussion

Here is a discussion on when to use which solution.

Note: I tested these examples with Lawson Smart Office 9.1.3.1.7.

Send SMS from Smart Office with Skype

To send an SMS text message to a mobile phone from a Personalized Script in Lawson Smart Office using Skype do:

skype.SendSms("+18472874945", "Hello World", null)

Script

A simple script that sends an SMS would be:

import System;
import System.Reflection;

package MForms.JScript {
    class SendSms {
         public function Init(element: Object, args: Object, controller : Object, debug : Object) {
             try {
                 var assembly: Object = Assembly.LoadFrom('C:\\Program Files\\Skype\\SEHE\\Interop.SKYPE4COMLib.dll');
                 var skype = assembly.CreateInstance('SKYPE4COMLib.SkypeClass');
                 skype.Attach(8, false);
                 skype.SendSms('+18472874945', 'Hello World!', null);
             } catch (ex: Exception) {
                 debug.WriteLine(ex);
             }
         }
    }
}

Note: The programming language for scripts in Smart Office is JScript.NET.

Installation

Follow these steps to run the script above:

  1. Download and install Skype on the computer that is running Smart Office (the script must communicate with Skype locally). Then sign in to Skype (the script will not work if you are not signed in). Also, your Skype account must have credit (USD, EUR, etc.) to be able to send SMS.
  2. Download and unzip Skype4COMsomewhere in your computer, for example C:\Program Files\Skype\skype4com-1.0.36\ . Skype4COM is the API used to send/receive Skype commands. Then register the DLL Skype4COM.dll with the following command:
    regsvr32 Skype4COM.dll

  3. Download and install SEHE and place the file Interop.SKYPE4COMLib.dll somewhere in your computer or somewhere on the network so that it is accessible by the Smart Office computer, for example C:\Program Files\Skype\SEHE\Interop.SKYPE4COMLib.dll or http://host/path/Interop.SKYPE4COMLib.dll . That DLL contains the Interop code to be able to call Skype4COM from the .NET framework.
  4. Launch Smart Office, and log in.
  5. For the Script Tool it is necessary to have an M3 program open, so open for example Customer. Open – CRS610.
  6. Open the Script Tool with the following command:
    mforms://jscript
  7. Copy/paste the sample script above into the Script Tool
  8. Change the path to the DLL. In my example I used C:\\Program Files\\Skype\\SEHE\\Interop.SKYPE4COMLib.dll . Make sure to escape the backslashes in the String with double backslashes.
  9. Change the phone number. It must be in international notation. In my example I used +18472874945.
  10. Click Compile
  11. Click Run
  12. Skype will show the message “LawsonClient.exe wants to use Skype”. Click Allow access; Skype will only ask once.
  13. Skype will now send the SMS. Check in your mobile phone that you received it. That’s it!

Note: I tested this on Windows XP and on Windows 7 32-bit with success. It doesn’t seem to work on Windows 64-bit. Also, I tested this in Smart Office 9.x.

More advanced script

A more elaborated script with an editable SMS text message in a pop-up looks like:
