Route optimization for MWS410 with OptiMap (continued)

Today I unbury old scripts from my archives, and I post them here and on my GitHub.

This script illustrates how to integrate the M3 Delivery Toolbox – MWS410/B with OptiMap – Fastest Roundtrip Solver to calculate and show on Google Maps the fastest roundtrip from the Warehouse to the selected Delivery addresses; it’s an application of the Traveling Salesman Problem (TSP) to M3. This is interesting for a company to reduce overall driving time and cost, and for a driver to optimize its truck load according to the order of delivery.

OptiMap_V3

The Warehouse (WHLO) is now detected from the selected rows, and its address is dynamically retrieved using API MMS005MI.GetWarehouse; no need to specify the Warehouse address as a parameter anymore.

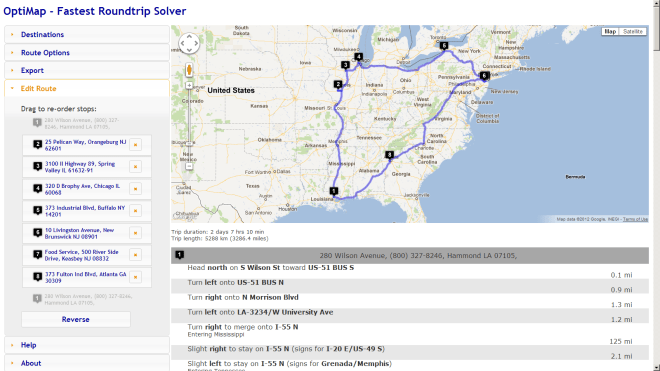

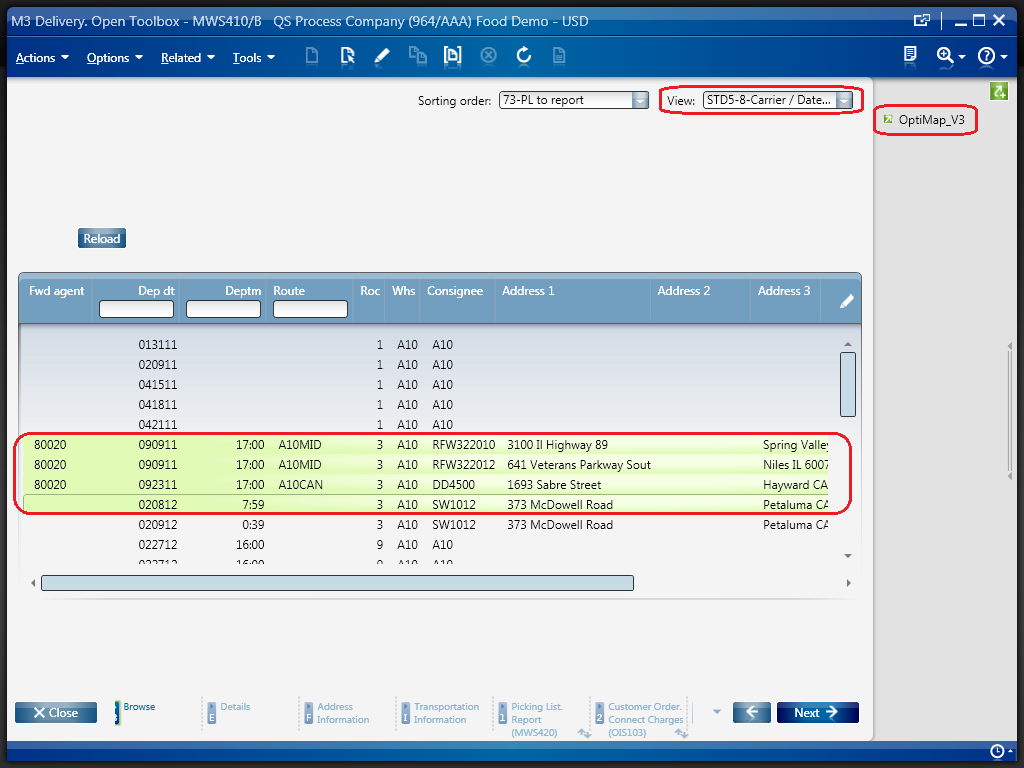

Create a view in M3 Delivery Toolbox MWS410/B that shows the address fields in the columns (e.g. ADR1, ADR2, ADR3), and set the field names in the parameter of the script.

8 10 13

OptiMap_V4  [PENDING]

Add ability to Export OptiMap’s route to M3 Loading (MULS) and Unloading sequence (SULS) using API MYS450MI.AddDelivery, closing the loop of integrating M3 to OptiMap.

This is an idea for version 4. Script to be developed…

Source code

I posted the source code on my GitHub.

Related posts

X.509 Token policy for M3 Web Services

I finally tested the X.509 Token policy in Infor M3 Web Services (MWS), and I share my results here.

X.509 Token Policy in MWS has been available for at least 7 years. For the setup, we create a public-private key and digital certificate for the SOAP client, and the SOAP client and SOAP server exchange certificates to authenticate each other.

Documentation

For an overview of WS-Security (WSS) in the context of M3, see my previous post.

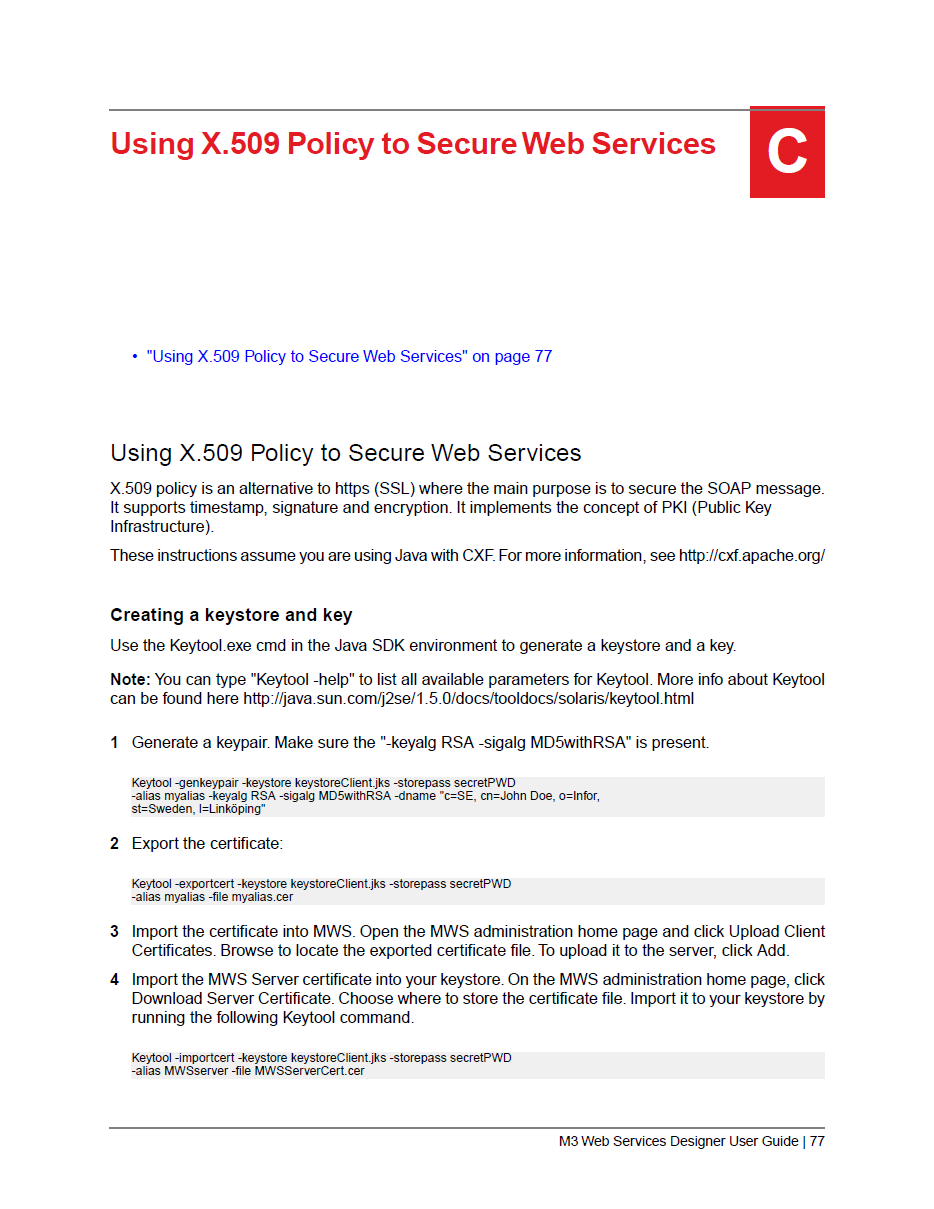

The MWS Designer (MWSD) User Guide has two modest chapters dedicated to WS-Security and X.509 Token policy, and snippets of source code for a Java client:
doc55 doc77

For more information about the implementation of WS-Security in MWS, read the documentation of Apache CXF and Apache WSS4J (Merlin), and explore the MWS server source code in the lws-server and lws-common JARs:
jar

Enable X.509 Token policy

First, create a web service in MWSD, of any type (API, MDP, SQL), deploy it, and test it to ensure it works correctly, e.g. CRS610MI.GetBasicData:
1

Then, go to Infor ION Grid Management Pages > MWSSecurity > Policy Settings > Service Context (e.g. services), select the web service (e.g. CRS610MI), and click the lock icon to Enable X.509 policy token:2

Server certificate

Then, go to Certificate Management, and download the server certificate, MWSServerCert.cer:
3

Note: Download it over HTTPS (secure) and not HTTP (clear text); otherwise verify in a side channel the key fingerprint received.

Now, import the server certificate into the client keystore so that the client can authenticate the server:

$ keytool -importcert -file MWSServerCert.cer -alias MwsServer -keystore keystoreClient.jks

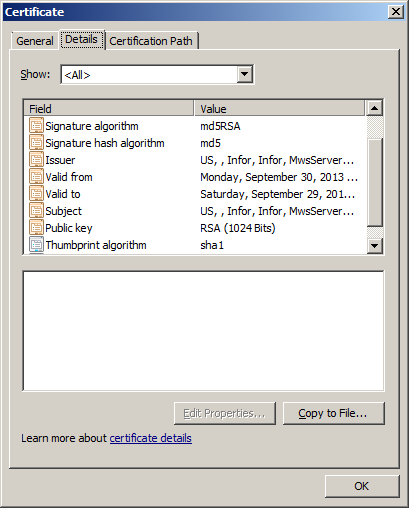

PROBLEM: Weak crypto

MWS uses weak cryptography [1], MD5 hashing algorithm and RSA key size 1024 bit:

Nowadays, it should use SHA256 and RSA key size 2048 bit. Maybe it is possible to upgrade the keys on the server; for future work:

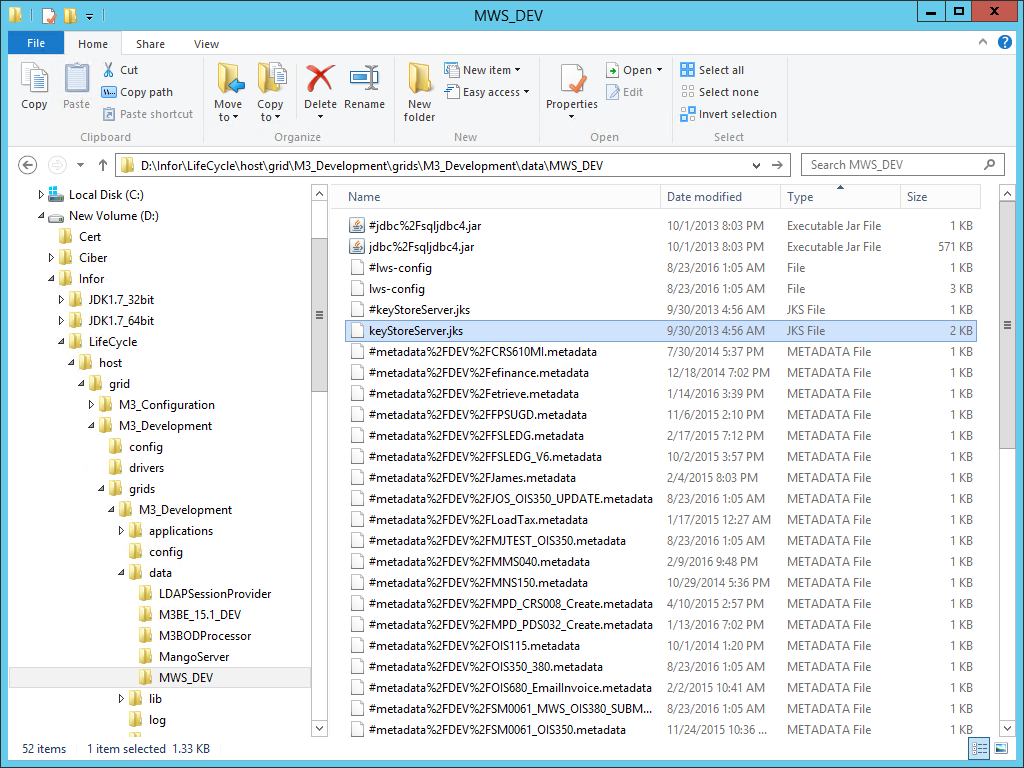

8

Client keys and certificate

Then, generate a public-private key and digital certificate for the SOAP client; use any tool such as JRE’s keytool or OpenSSL:

$ keytool -genkeypair -keystore keystoreClient.jks -alias trustedclient_host -keyalg RSA

$ keytool -exportcert -keystore keystoreClient.jks -alias trustedclient_host -file trustedclient_host.cer

PROBLEM 1: Do not use the weak crypto recommended by the MWSD User Guide in the parameters keyalg and sigalg. Instead, let the keytool use the default values which today for RSA is 2048 bit key size and SHA256withRSA hashing [2].

PROBLEM 2: Use RSA because with DSA the MWS server throws “java.security.InvalidKeyException: Unsupported key type: Sun DSA Public Key”

PROBLEM 3: The MWSD User Guide uses -alias myalias. But when we upload the certificate to the server, the server changes the alias to “trustedClient_” + hostName regardless. So I use that alias too.

Note: Keep the private key private! If you need to send it somewhere, do so only over a secure channel (regular email is not a secure channel). On the other hand, the public key and certificate are public, so you can shout them in the street no problem.

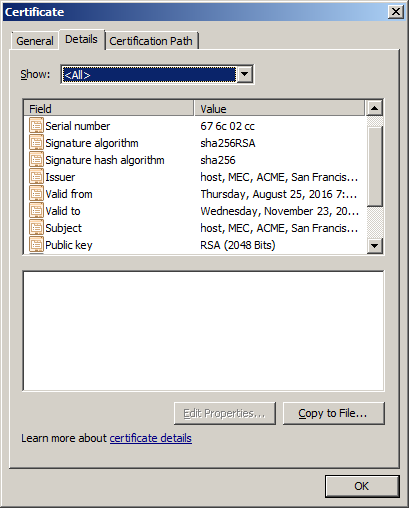

Here is the client certificate with stronger crypto:
7_

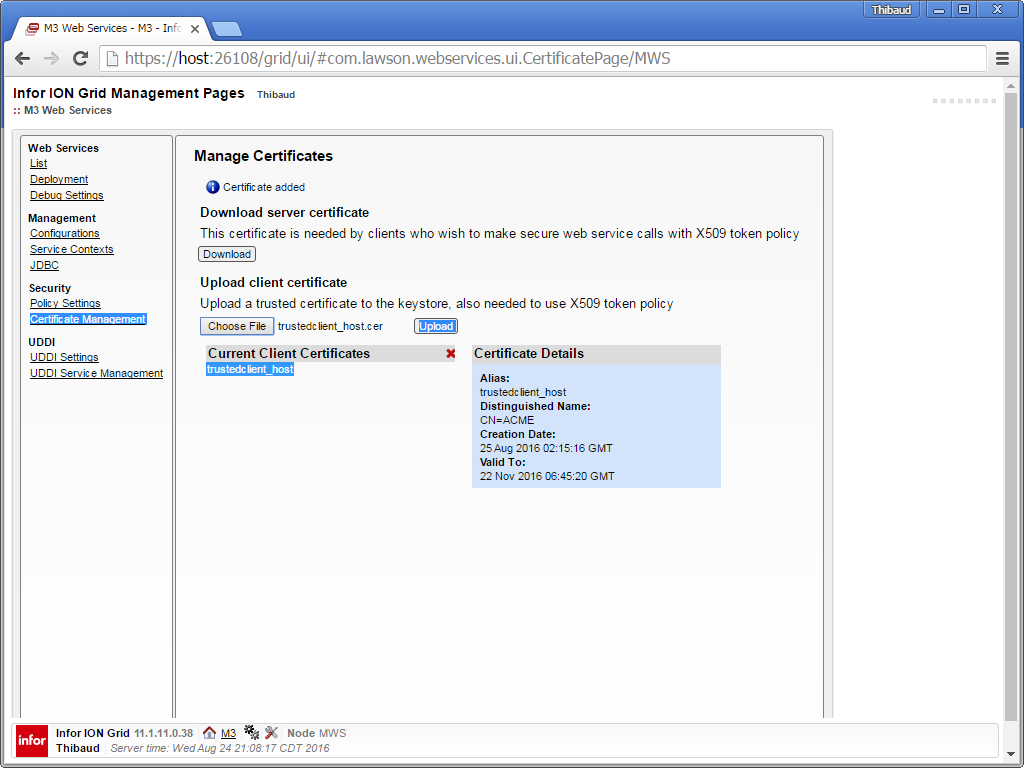

Now, upload the client certificate to the MWS server, so that the server can authenticate the client (peer authentication):

Note: Upload over HTTPS (secure) and not HTTP (clear text); otherwise verify in a side channel the key fingerprint the server received.

Test with SoapUI

Now, test using any SOAP client that supports WS-Security, such as SoapUI.

Create a new SOAP project as usual:
10_

Go to Project View > WS-Security Configurations > Keystores, and add keystoreClient.jks and Password:

Go to Outgoing WS-Security Configurations, and add a configuration, e.g. outgoing.

Add an action Timestamp:

PROBLEM 1: The Timestamp must be non-zero, e.g. 10; if I set it to zero the server throws “Security processing failed (actions mismatch) […] An error was discovered processing the <wsse:Security> header” and I do not know why.

Add an Signature action (it is for the client to sign the message with its private key, and for the server to use the client’s public key and verify the integrity of the message received). Select the client Keystore, select the Alias of the client, set the keystore Password, in Parts add Name Body with the Namespace of <soapenv:Body> which is http://schemas.xmlsoap.org/soap/envelope/ and Encode Content, and leave the rest default:
12

Add an Encryption action (it is for the client to encrypt the message with the server’s public key, and for the server to decrypt it with its private key). Select the client Keystore, select the Alias of the server, set the keystore Password, in Parts add the same as above, and leave the rest default:
13

PROBLEM 2: SoapUI is buggy and does not always seem to immediately pick my changes in the configurations, so I had to close and re-open it to pick my changes.

Now for decryption, go to Incoming WS-Security Configurations, add a configuration, e.g. incoming (the server will encrypt the SOAP response with the client’s public key, so this is for the client to decrypt that using its private key; and the server will sign the SOAP response with its private key, and the client will verify the signature of the message received using the server’s public key). Select the Decrypt Keystore, the Signature Keystore, and set the keystore Password:
14

PROBLEM 3: There is a bug with decryption in SoapUI 5.2.1, and I solved it by replacing the version of wss4j.jar as explained in this post:
bug2

Now, create the sample SOAP request (SoapUI already created a sample request), remove the <soapenv:Header> which we do not need, set your input parameters (e.g. CustomerNumber), add Basic authentication with the M3 Username and Password, select to Authenticate pre-emptively (optional), select the Outgoing WSS and Incoming WSS, and click Submit:
15

The client will encrypt and sign the Body, the server will decrypt it and verify the signature, the server will execute the web service (e.g. CRS610MI.GetBasicData), it will encrypt and sign the response, and return it to the client.

Result

We now have the decrypted and verified SOAP response (e.g. CustomerName, CustomerAddress):
16

PROBLEM: Plain HTTP and authentication

My understanding of WS-Security is that by design it is an option to transport the message over plain HTTP. That scenario will occur when the message passes the TLS termination point and into proxies and gateways over plain HTTP. For that, we could securely set the M3 user/password in the SOAP header at <cred:lws> and add them to the Encryption and Signature actions. However, I tried it, and I removed the user/password from the HTTP Basic authentication, but MWS throws “401 Unauthorized […] WWW-Authenticate: Basic […] fault […] missing_credentials”:
bug

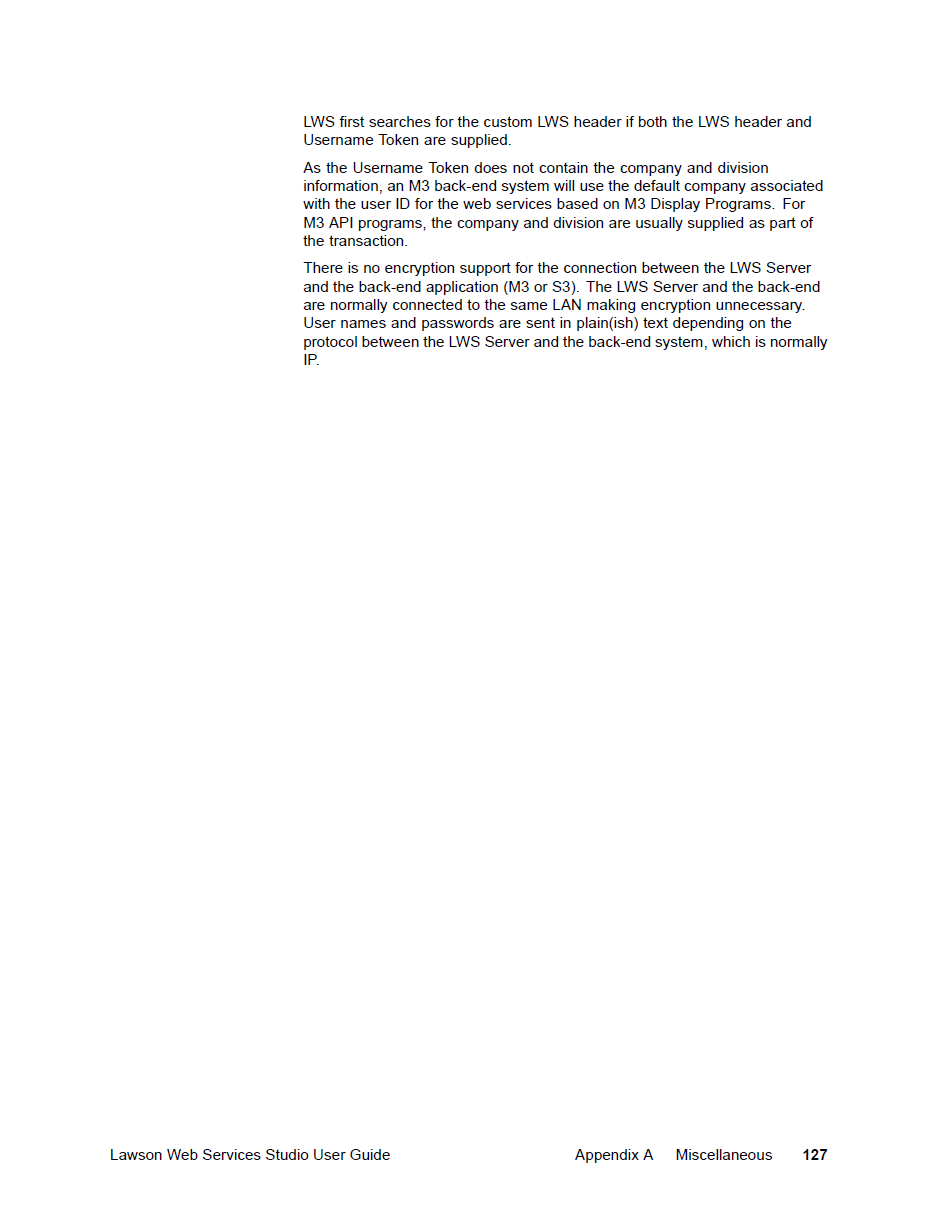

I found some old documentation from 2009 that sheds more light; maybe I have to use the Username Token instead; for future work:
doc126 doc127

Grid best practice

As a general best practice for the Grid, ensure the Configuration Manager > Routers > Default Router, has WWW Authentication Methods disabled for plain HTTP, and enabled for HTTPS only, to prevent sending user/password over plain HTTP:

Troubleshooting

Here are some tips for troubleshooting.

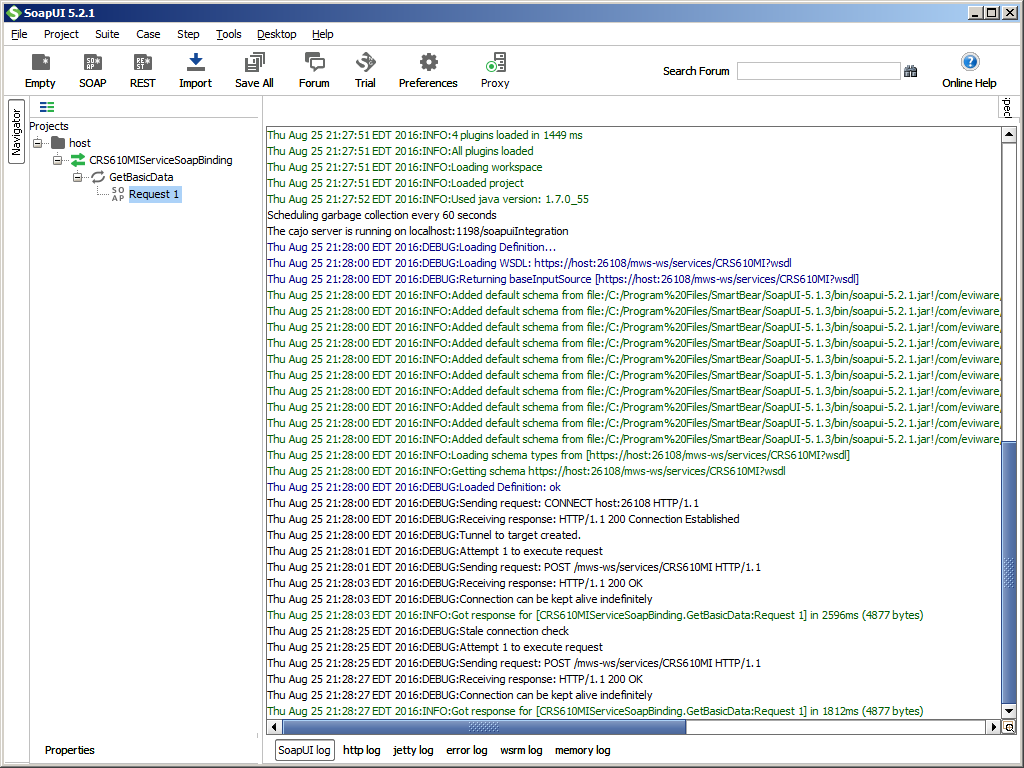

Use SoapUI’s six tabs of logs:
logs5

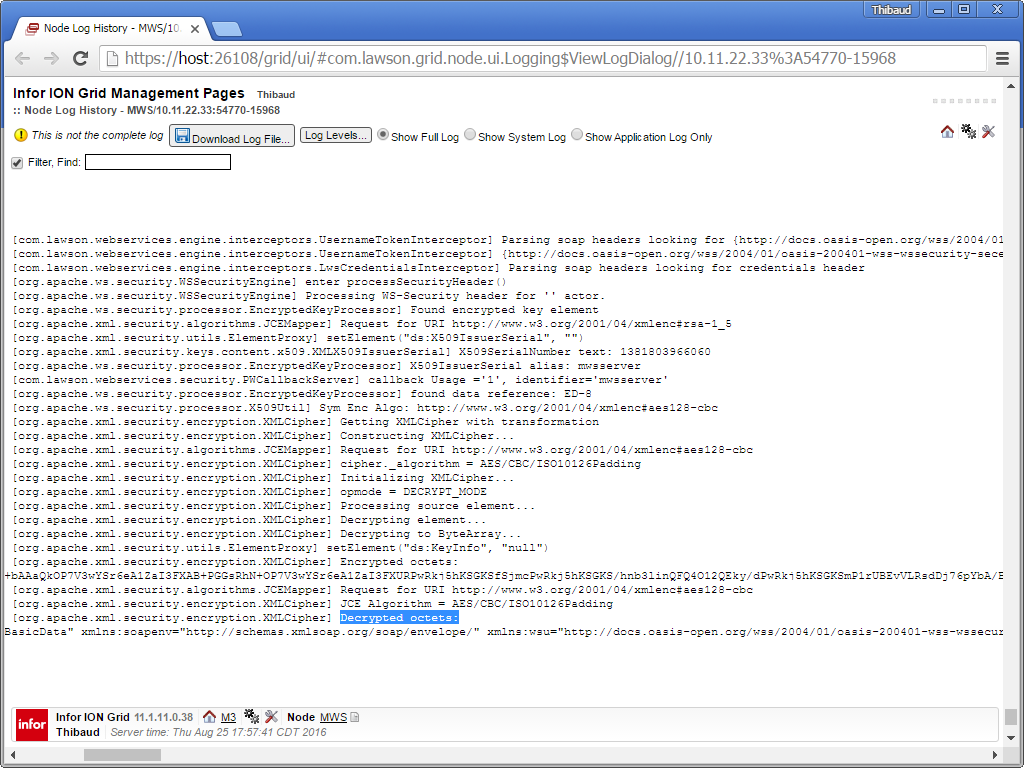

Set the MWS logs to DEBUG level:
logs
logs3

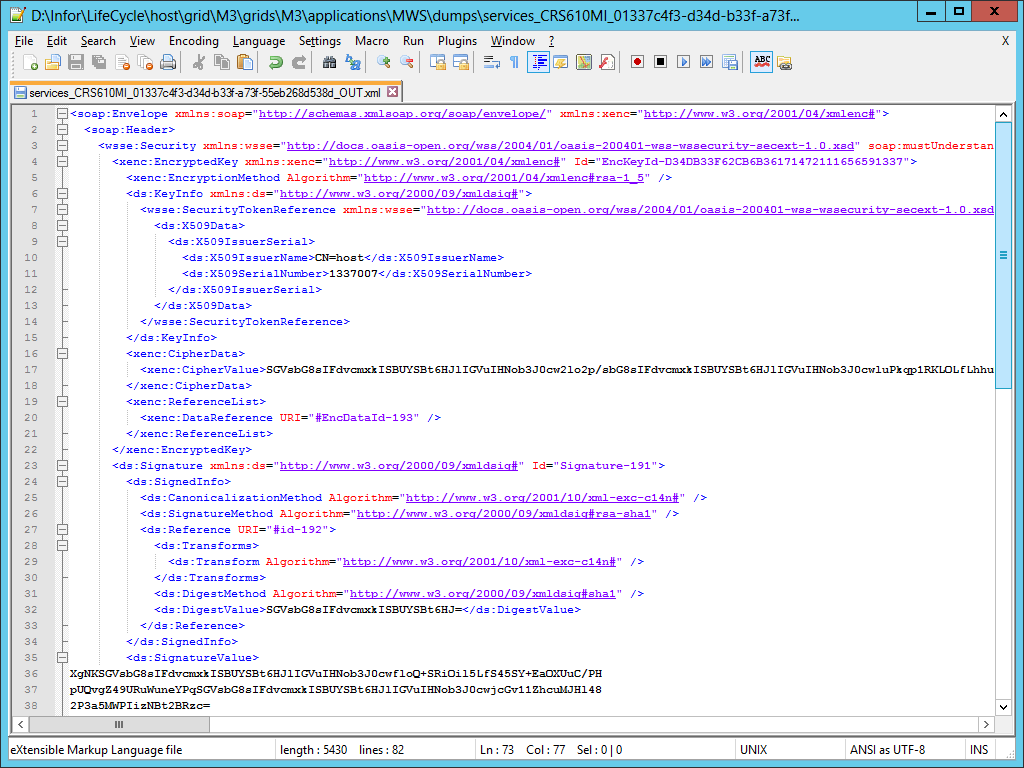

Set the MWS Debug Settings to create dump files of all the encrypted and signed SOAP requests (_IN.xml) and responses (_OUT.xml) in the MWS\dumps folder:
logs4
logs2

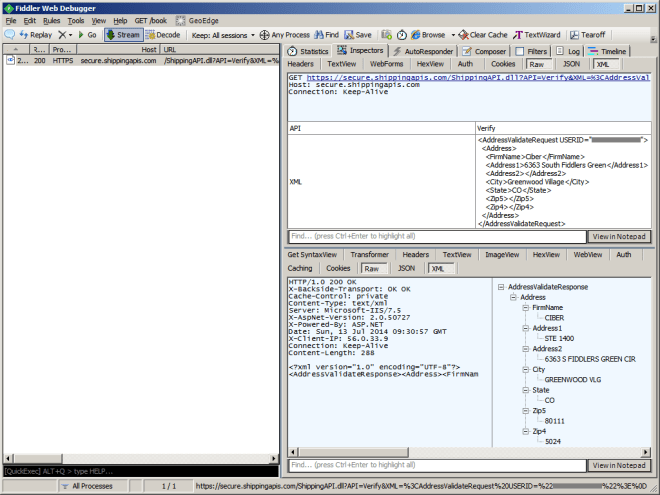

Set your SOAP client to use a proxy like Fiddler:
Fiddler_ Fiddler

Conclusion

That was my result of testing X.509 Token policy for M3 Web Services with SoapUI. It requires quite a good understanding of the public-key cryptography concepts (public-private keys, certificates, keystores, the dance between client and server, encryption, digital signatures), and it opened more questions than it answered.

Future work

I may work on the following in the future:

  • Implement a similar test client in Java
  • Upgrade the MWS server to stronger crypto
  • Call the web service over plain HTTP (instead of HTTPS)
  • Authenticate over plain HTTP (maybe Username Token, instead of Basic authentication or <cred:lws>)
  • Test MWS against WS-Attacker

That’s it.

Please subscribe, comment, like, share with your colleagues, write the next idea with us, or start your own blog.

More interfaces

If you need to integrate Infor M3 with any of the following interfaces, here are most of the interfaces with which I have worked in the past two years for which I have not posted anything on this blog yet, and for which I may be able to help you if you have questions (contact me here). For that, I used a variety of Enterprise Collaborator, Smart Office scripts, and other code.

Also, check-out the other interfaces I have worked with.

Procurement PunchOut with cXML

Hi colleagues. It has been a while since I posted anything. Today I will write a quick post as part of an interface I am currently developing to do procurement PunchOut using cXML, an old protocol from 1999, for my customer and its suppliers. This will eventually end up in their Infor M3 and M3 Enterprise Collaborator implementation.

I only needed to test the Message Authentication Code (MAC) so I wrote a quick prototype in Python.

The cXML User’s Guide describes the MAC algorithm using HMAC-SHA1-96:

Here is my implementation in Python:

# Normalize the values
data = [fromDomain.lower(),
        fromIdentity.strip().lower(),
        senderDomain.lower(),
        senderIdentity.strip().lower(),
        creationDate,
        expirationDate]

# Concatenate the UTF-8-encoded byte representation of the strings, each followed by a null byte (0x00)
data = b''.join([(bytes(x, "utf-8") + b'\x00') for x in data])

# Calculate the Message Authentication Code (MAC)
digest = hmac.new(password.encode("utf-8"), data, hashlib.sha1).digest()

# Truncate to 96 bits (12 bytes)
truncated = digest[0:12]

# Base-64 encode, and convert bytearray to string
mac = str(base64.b64encode(truncated), "utf-8")

# Set the CredentialMac in the XML document
credentialMac = xml.find("Header/Sender/Credential").find("CredentialMac")
credentialMac.attrib["creationDate"] = creationDate
credentialMac.attrib["expirationDate"] = expirationDate
credentialMac.text = mac

Here is my resulting MAC, and it matches that of the cXML User’s Guide, good:

I posted the full source code in my GitHub repository at https://github.com/M3OpenSource/cXML/blob/master/Test.py .

That’s it!

Thank you for continuing to support this blog.

Integrating Zeacom call center with Infor Smart Office

Here is a source code that a customer and I worked out to integrate the Zeacom call center with Infor Smart Office such that their customer service representatives can receive phone calls from their customers and automatically launch the respective M3 customer programs; this is similar to the previous integration work with Cisco Agent Desktop, Twilio, Skype, etc.

This source code is a script assembly in C#; for more information on script assemblies see here and here. The trick was to keep the z variable as a global variable, not as a local variable, so it can survive in memory for the event handlers.

You will need to reference the DLL files from your Zeacom software.

using Mango.UI;
using MForms;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;

namespace MForms.JScript
{
	public class ZeacomAssembly
	{
		MLINTERFACELib.ZeacomMLI z = new MLINTERFACELib.ZeacomMLI();

		public void Init(object element, object args, object controller, object debug)
		{
			string phoneExt = "1234";
			if (z.AddExtension(phoneExt))
				if (z.Initialise())
					z.OnNewExtensionCall += OnNewExtensionCall;
		}

		private void OnNewExtensionCall(object Extension, object Call)
		{
			Application.Current.Dispatcher.Invoke(new ShowInformationDelegate(ShowInformation), new object[] {Extension, Call});
		}

		private delegate void ShowInformationDelegate(object Extension, object Call);

		private void ShowInformation(object Extension, object Call)
		{
			ConfirmDialog.ShowInformationDialog("Incoming Call", "MLI Event: OnNewExtensionCall(: " + ((MLINTERFACELib.IExtension)Extension).AddressName + ", " + ((MLINTERFACELib.ICall)Call).CallReference + OutputCallInfo((MLINTERFACELib.ICall)Call));
		}
		private string OutputCallInfo(MLINTERFACELib.ICall Call)
		{
			StringBuilder CallString = new StringBuilder();
			if (Call != null)
			{
				CallString.AppendLine("CalledID = " + Call.CalledId);
				CallString.AppendLine("Caller = " + Call.Caller);
				CallString.AppendLine("CallOrigin = 0x" + Call.CallOrigin.ToString("X"));
				CallString.AppendLine("CallReason = 0x" + Call.CallReason.ToString("X"));
				CallString.AppendLine("CallReference = 0x" + Call.CallReference.ToString("X"));
				CallString.AppendLine("CLI = " + Call.CLI);
				CallString.AppendLine("CLIA = " + Call.CLIA);
				CallString.AppendLine("CLIF = " + Call.CLIF);
				CallString.AppendLine("CLIP = " + Call.CLIP);
				CallString.AppendLine("DNIS = " + Call.DNIS);
				CallString.AppendLine("Pilot = " + Call.Pilot);
				CallString.AppendLine("Query = " + Call.Query);
				CallString.AppendLine("QueryName = " + Call.QueryName);
				CallString.AppendLine("Queue = " + Call.Queue);
				CallString.AppendLine("RelatedRef = 0x" + Call.RelatedRef.ToString("X"));
				CallString.AppendLine("TransferredID = " + Call.TransferredId);
				CallString.AppendLine("TransferrerID = " + Call.TransferrerId);
				CallString.AppendLine("Trunk = " + Call.Trunk);
				CallString.AppendLine("Type = " + Call.Type);
				CallString.AppendLine("Wait = " + Call.Wait);

				if (Call.DataCallPayloadString.Length > 0)
					CallString.AppendLine("DataCallPayloadString = '" + Call.DataCallPayloadString + "'");

				CallString.AppendLine("");
			}
			return CallString.ToString();
		}
	}
}

Walking directions in a warehouse (part 2)

Today I will illustrate how I started implementing my proof-of-concept for walking directions in a warehouse, and I will provide the source code. The goal is to show the shortest path a picker would have to walk in a warehouse to complete a picking list and calculate the distance for it. This is most relevant for big warehouses and for temporary staff that are not yet familiar with a warehouse. The business benefit is to minimize picking time, reduce labor costs, increase throughput, and gather performance metrics. I used this for my demo of M3 picking lists in Google Glass.

A* search algorithm

I used Will Thimbleby’s wonderful illustration of A* shortest path in Javascript. We can drag and drop the start and stock locations to move them around and recalculate the path, and we can draw walls. I made the map bigger, and I put a warehouse image as a background.

Implementation

Here are the steps I performed:

  1. Double the map’s width/height
  2. Un-hard-code the map width/height
  3. Set the cell size and calculate the canvas width/height
  4. Un-hard-code the cell size
  5. Make a warehouse image in an image editor (I used Gimp)
  6. Add the warehouse image as background of the map
  7. Hide the heat map (search scores)
  8. Patiently draw the map, the walls, the doors, and the stock locations
  9. Save the drawing by serializing the map to JavaScript source code
  10. Replace startMap with the saved drawing
  11. Thicken the path’s stroke
  12. Hide the grid lines
  13. Hide the map
  14. Use diagonals
  15. Emphasize the path length

Here is a video of the making process (watch it in full-screen, HD, and 2x speed):

Result

You can test the result for yourself on my website here.

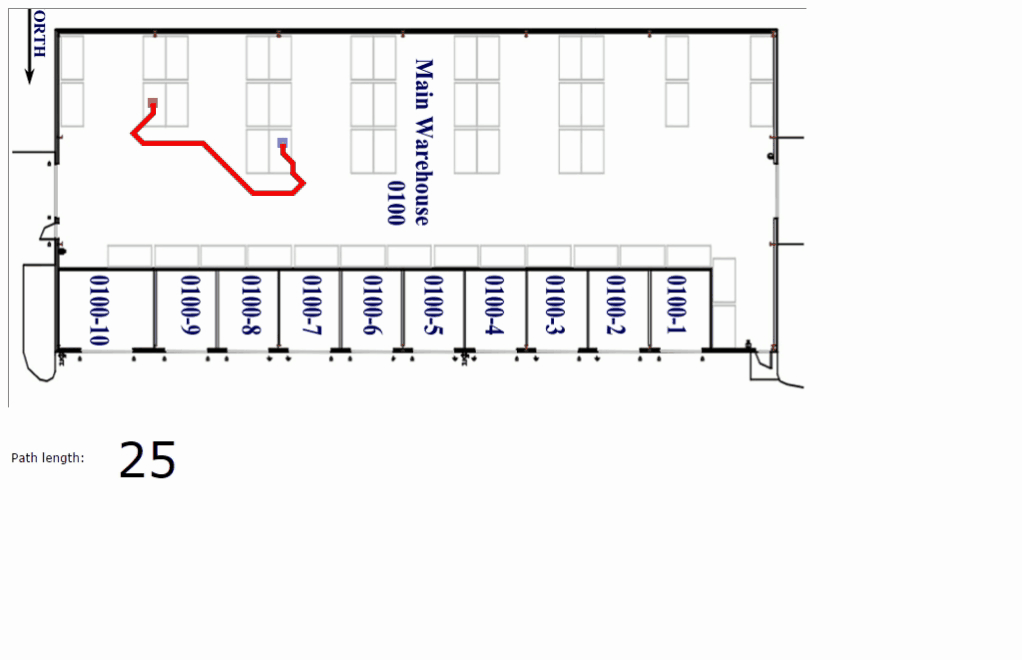

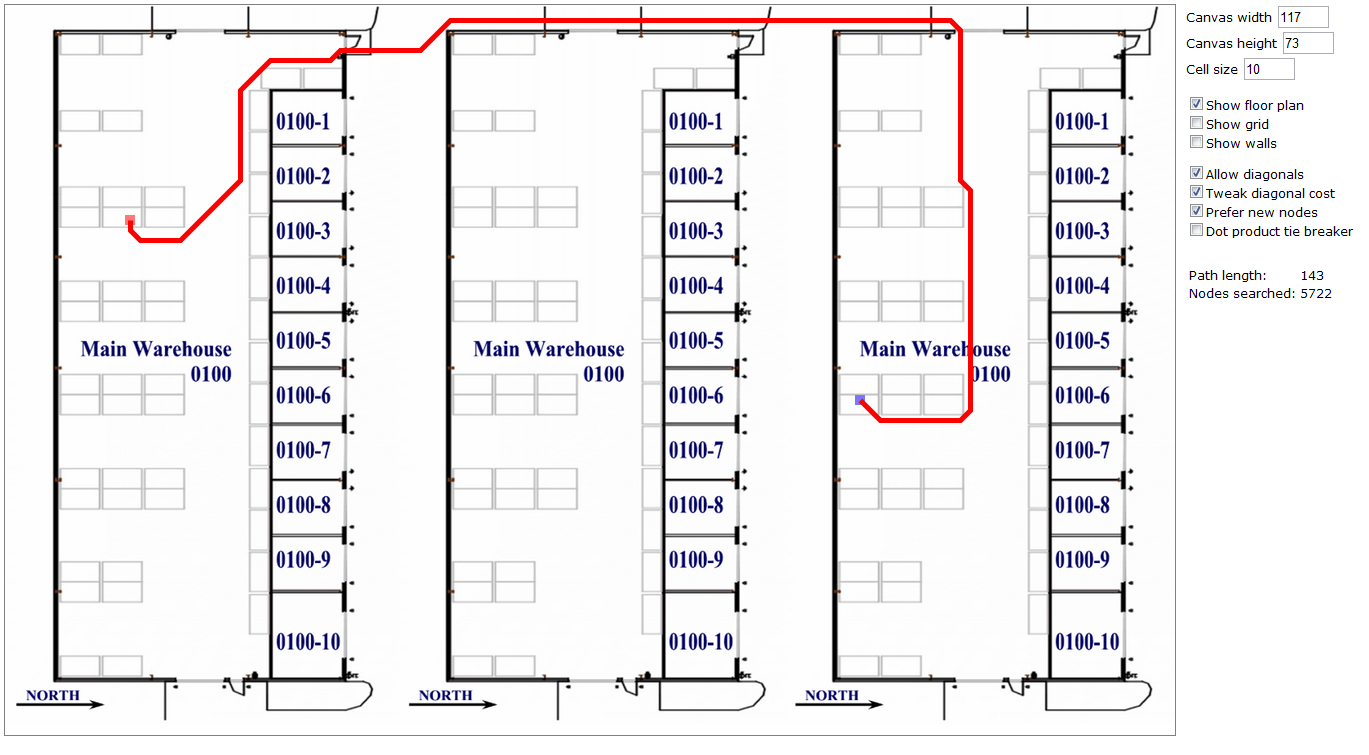

Here is an animated GIF of the result:
result1

Here is a video of the result for a small warehouse:

Here is a video of the result for a big warehouse:

Source code

I put the resulting HTML, JavaScript source code and images in my GitHub repository for you to download and participate.

Future work

Some of the future work includes:

  • Convert the path length into meters or feet
  • Project the geocoded stock location coordinates to the map’s coordinates
  • Set the start and end locations as input parameters
  • Automatically generate a screenshot of the path for printing alongside the picking list
  • Show the shortest path for an entire picking list using a Traveling Salesman Problem (TSP) algorithm
  • Improve performance for big maps
  • Provide a map editor to more accurately align the warehouse image with the map

Also, a much better implementation would be to use Google Maps Indoors.



That’s it. If you liked this, please thumbs up, leave a comment in the section below, share around you, and come author the next post with me.

Walking directions in a warehouse

Two years ago I had implemented a proof-of-concept that showed walking directions in a warehouse to complete a picking list. The idea is to visually represent what a picker has to do, and where they have to go, while calculating the minimum distance they have to walk. It will make it easier to get the job done for pickers that are not familiar with a warehouse, like temporary staff. And the business benefit is to minimize picking time, to make savings in labor costs, and to increase throughput. Also, we can save performance data on the ground, derive the gap between goals versus results, and use that as a feedback loop for continuous improvement of internal processes.

I had used my previous work on geocoding of stock locations in M3, and I had used Will Thimbleby‘s JavaScript implementation of the A* search algorithm to calculate and show the shortest path between two stock locations. I yet have to integrate the Traveling Sales Problem (TSP) algorithm for the entire picking list similar to my previous work on delivery route optimization for M3.

And there is more work to be done. For instance, the calculation responds quickly on my laptop for about 11 picking list lines, perhaps 13 with the ant colony optimization, but beyond that the calculation time grows exponentially beyond useful. Also, the calculation does not take into account bottleneck or collision avoidance for forklifts. Currently, this project is a great proof-of-concept to be further explored.

When Google Maps launched their outstanding Indoor Maps I had shelved my small project. But Google Indoor Maps requires the maps to be public which our M3 customers are reluctant to do. So for Inforum this week, I un-boxed my project and integrated it in my Google Glass demo. Here below are some screenshots of the project. I will be writing a series of posts soon on how to implement it. And I would like your feedback.

In future work, I will implement the same proof-of-concept using Google Indoor Maps.

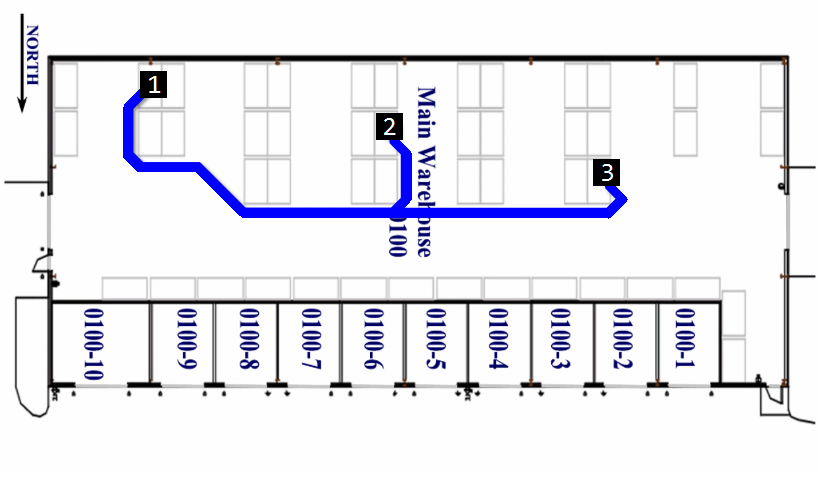

planL



x y
