Integrating Zeacom call center with Infor Smart Office

Here is a source code that a customer and I worked out to integrate the Zeacom call center with Infor Smart Office such that their customer service representatives can receive phone calls from their customers and automatically launch the respective M3 customer programs; this is similar to the previous integration work with Cisco Agent Desktop, Twilio, Skype, etc.

This source code is a script assembly in C#; for more information on script assemblies see here and here. The trick was to keep the z variable as a global variable, not as a local variable, so it can survive in memory for the event handlers.

You will need to reference the DLL files from your Zeacom software.

using Mango.UI;
using MForms;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Windows;

namespace MForms.JScript
{
	public class ZeacomAssembly
	{
		MLINTERFACELib.ZeacomMLI z = new MLINTERFACELib.ZeacomMLI();

		public void Init(object element, object args, object controller, object debug)
		{
			string phoneExt = "1234";
			if (z.AddExtension(phoneExt))
				if (z.Initialise())
					z.OnNewExtensionCall += OnNewExtensionCall;
		}

		private void OnNewExtensionCall(object Extension, object Call)
		{
			Application.Current.Dispatcher.Invoke(new ShowInformationDelegate(ShowInformation), new object[] {Extension, Call});
		}

		private delegate void ShowInformationDelegate(object Extension, object Call);

		private void ShowInformation(object Extension, object Call)
		{
			ConfirmDialog.ShowInformationDialog("Incoming Call", "MLI Event: OnNewExtensionCall(: " + ((MLINTERFACELib.IExtension)Extension).AddressName + ", " + ((MLINTERFACELib.ICall)Call).CallReference + OutputCallInfo((MLINTERFACELib.ICall)Call));
		}
		private string OutputCallInfo(MLINTERFACELib.ICall Call)
		{
			StringBuilder CallString = new StringBuilder();
			if (Call != null)
			{
				CallString.AppendLine("CalledID = " + Call.CalledId);
				CallString.AppendLine("Caller = " + Call.Caller);
				CallString.AppendLine("CallOrigin = 0x" + Call.CallOrigin.ToString("X"));
				CallString.AppendLine("CallReason = 0x" + Call.CallReason.ToString("X"));
				CallString.AppendLine("CallReference = 0x" + Call.CallReference.ToString("X"));
				CallString.AppendLine("CLI = " + Call.CLI);
				CallString.AppendLine("CLIA = " + Call.CLIA);
				CallString.AppendLine("CLIF = " + Call.CLIF);
				CallString.AppendLine("CLIP = " + Call.CLIP);
				CallString.AppendLine("DNIS = " + Call.DNIS);
				CallString.AppendLine("Pilot = " + Call.Pilot);
				CallString.AppendLine("Query = " + Call.Query);
				CallString.AppendLine("QueryName = " + Call.QueryName);
				CallString.AppendLine("Queue = " + Call.Queue);
				CallString.AppendLine("RelatedRef = 0x" + Call.RelatedRef.ToString("X"));
				CallString.AppendLine("TransferredID = " + Call.TransferredId);
				CallString.AppendLine("TransferrerID = " + Call.TransferrerId);
				CallString.AppendLine("Trunk = " + Call.Trunk);
				CallString.AppendLine("Type = " + Call.Type);
				CallString.AppendLine("Wait = " + Call.Wait);

				if (Call.DataCallPayloadString.Length > 0)
					CallString.AppendLine("DataCallPayloadString = '" + Call.DataCallPayloadString + "'");

				CallString.AppendLine("");
			}
			return CallString.ToString();
		}
	}
}

How to decrypt network traffic from Infor Grid

Here is a technique to intercept and decrypt the TLS (HTTPS) network traffic from the Infor Grid using Wireshark and the server’s private keys.

Why does it matter?

This technique is useful for troubleshooting products like M3 Web Services (MWS) and Infor Process Automation (IPA) which don’t log the HTTP requests and responses in their entirety. For instance, MWS Runtime can optionally dump the SOAP requests and SOAP responses but misses the HTTP request headers and HTTP response headers, and IPA only logs the HTTP response body but misses the HTTP request’s header and body and the HTTP response header, and neither MWS nor IPA let us hook to a proxy such as Fiddler. Sometimes it’s necessary to troubleshoot the HTTP requests and responses in their entirety. For example, I’m currently troubleshooting for a customer the case of a rogue white space somewhere in a request that’s throwing a syntax error down stream in a parser, and I need to chase the bug down by analyzing the hexadecimal values of the bytes, and for that I need un-encrypted traffic.

We could use Wireshark to intercept all network packets but if the traffic is encrypted with TLS (HTTPS) it’s unreadable. In public-key cryptography, a client and server initiate a TLS connection using asymmetric cryptography, and then switch to symmetric cryptography for the rest of the session. Fortunately, the Wireshark SSL dissector can decrypt traffic if we give it the server’s private keys. I had previously showed this technique a long time ago to decrypt Lawson Smart Office traffic and more recently to intercept un-encrypted IPA traffic. This time I update the technique for encrypted traffic of the Infor Grid.

Don’t get exited about hacking and don’t freak out about security because this technique is only available for those administrators that have access to the servers private keys and passwords.

Server’s private keys and passwords

First, we will need to find the Infor Grid’s private keys and passwords. I don’t do Grid installations so I don’t know where the keys are stored (if in the same path on any Grid, or if at a path defined by the installer), nor how the keys are generated (if automatically by the Grid, or if manually by the installer). In my case, I was testing on two different Grids and I found the keys in LifeCycle Manager (LCM) server at these two different paths:

D:\Infor\LifeCycle\<host>\grid\<grid>\grids\<grid>\secure\

E:\Infor\LifeCycle Manager\LCM-Server\grid\<grid>\keyStore\

This non-consistency tells me the path is defined by the installer.

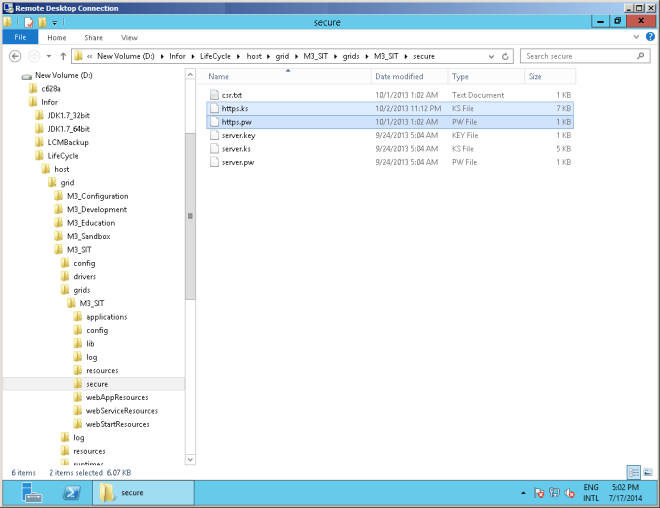

Here is a screenshot:

The paths contain many files of type *.ks and *.pw. The KS file type is a keystore encrypted with a password. The PW file type is the password in clear text; it looks encrypted but it’s just long random clear text. In my second Grid, there were about 50 pairs of files where the file names seem to follow a specific naming convention. That tells me the keys and passwords are generated automatically by the Grid.

Export and convert the private key

Now that we have the keystores and the passwords, we need to export the private key from the keystore and convert it to a format supported by Wireshark. For that, we can use the keytool of the JRE to export and OpenSSL to convert, or use KeyStore Explorer that will both export and convert.

Here’s with the keytool (export to PKCS12) and OpenSSL (convert to PEM):

keytool -importkeystore -srckeystore mykeystore.ks -destkeystore myexportedkey.p12 -deststoretype PKCS12
openssl pkcs12 -in myexportedkey.p12 -out myexportedkey.pem -nocerts -nodes -passin file:mykeystore.pw

And here’s with the KeyStore Explorer (directly to PEM):

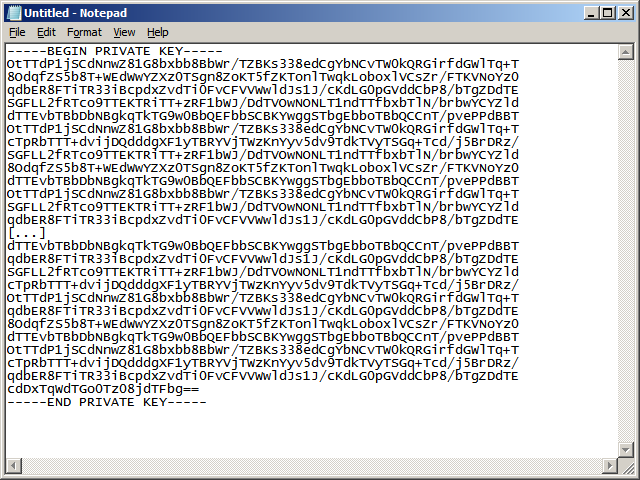

Now we have a file with —–BEGIN PRIVATE KEY—–:

Import the private key in Wireshark

Now we import the key in Wireshark > Edit > Preferences > Protocols > SSL and set the Infor Grid server’s IP address, port and private key (PEM):

Intercept and decrypt traffic

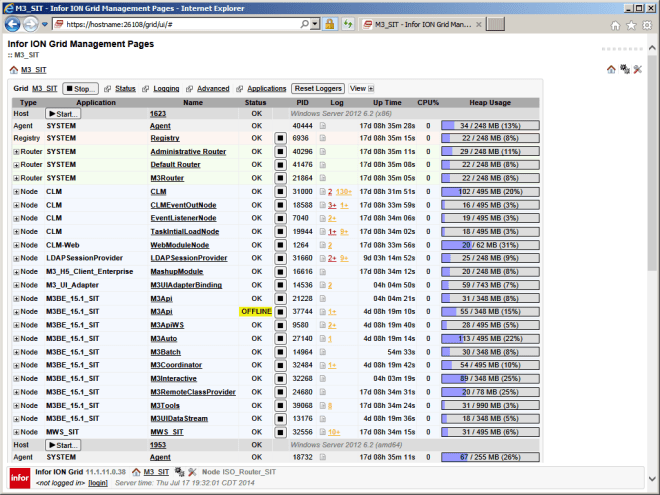

Now we are ready to intercept and decrypt traffic, for example we can go to the Grid Management Pages with HTTPS:

Then we filter for ssl, see the decrypted traffic, the key exchange, and Follow SSL Stream:

Summary

That was a technique to intercept and decrypt network traffic of the Infor Grid using Wireshark and the server’s private keys which is useful for troubleshooting purposes. This technique is only available to the administrators that have access to the servers.

If you know of a simpler technique please let me know.

That’s it. Please like, comment, subscribe, share. Thank you.

Open source address validation for Infor M3 using UPS

In the series for the open source address validation for Infor M3, I just added to the GitHub repository a sample script to do address validation using the UPS Address Validation – Street Level API.

UPS Address Validation – Street Level

You will need an access key with UPS to access the API, documentation and samples:

Sample HTTP request/response

Once you have the access key and documentation, you need to submit an HTTP POST request with two concatenated XML documents:

Sample script

Here is the sample TestUPS.js script for Infor Smart Office:

 import System;
 import System.IO;
 import System.Net;
 import System.Xml;
 import System.Xml.Linq;

 /*
     Sample script for Infor Smart Office to validate addresses with the UPS Street Level API
     PENDING: replace authentication and address values + error handling + background thread + user interface
     https://www.ups.com/upsdeveloperkit
 */

 package MForms.JScript {
     class TestUPS {
         public function Init(element: Object, args: Object, controller : Object, debug : Object) {
             // authentication
             var doc1: XDocument = new XDocument(
                 new XDeclaration("1.0", "utf-8"),
                 new XElement("AccessRequest",
                     new XElement("AccessLicenseNumber", "****************"),
                     new XElement("UserId", "******"),
                     new XElement("Password", "********")
                 )
             );
             // address
             var doc2: XDocument = new XDocument(
                 new XDeclaration("1.0", "utf-8"),
                 new XElement("AddressValidationRequest",
                     new XElement("Request",
                         new XElement("TransactionReference",
                             new XElement("CustomerContext", "Infor Smart Office"),
                             new XElement("XpciVersion", "1.0"),
                         ),
                         new XElement("RequestAction", "XAV"),
                         new XElement("RequestOption", "3")
                     ),
                     new XElement("AddressKeyFormat",
                         new XElement("ConsigneeName", "Ciber"),          // Name
                         new XElement("BuildingName", ""),
                         new XElement("AddressLine", "Fiddlers Green"),   // Address line 1
                         new XElement("AddressLine", ""),                 // Address line 2
                         new XElement("AddressLine", ""),                 // Address line 3
                         new XElement("AddressLine", ""),                 // Address line 4
                         new XElement("Region", ""),
                         new XElement("PoliticalDivision2", "Greenwd"),   // City
                         new XElement("PoliticalDivision1", "CO"),        // State
                         new XElement("PostcodePrimaryLow", ""),          // Zip5
                         new XElement("PostcodeExtendedLow", ""),         // Zip4
                         new XElement("Urbanization", ""),
                         new XElement("CountryCode", "US")                // Country
                     )
                 )
             );
             // concatenate both XML docs
             var sw: StringWriter = new StringWriter();
             doc1.Save(sw);
             doc2.Save(sw);
             var docs: String = sw.GetStringBuilder().ToString();
             // HTTP request
             var request: HttpWebRequest = HttpWebRequest(WebRequest.Create("https://onlinetools.ups.com/ups.app/xml/XAV"));
             request.Method = "POST";
             var byteArray: byte[] = System.Text.Encoding.UTF8.GetBytes(docs);
             var dataStream: Stream = request.GetRequestStream();
             dataStream.Write(byteArray, 0, byteArray.Length);
             dataStream.Close();
             // HTTP response
             var response: HttpWebResponse = request.GetResponse();
             var data: Stream = response.GetResponseStream();
             var doc: XmlDocument = new XmlDocument();
             doc.Load(data);
             data.Close();
             response.Close();
             // check for errors
             var error: XmlNode = doc.SelectSingleNode("//Response/Error");
             if (error != null) {
                 debug.WriteLine("Error " + error.SelectSingleNode("ErrorCode").InnerText + ": " + error.SelectSingleNode("ErrorDescription").InnerText);
                 return;
             }
             // show results
             var nodes: XmlNodeList = doc.SelectNodes("//AddressKeyFormat");
             var keys : String[] = [
                 "AddressClassification/Description",
                 "ConsigneeName",
                 "BuildingName",
                 "AddressLine[1]",
                 "AddressLine[2]",
                 "PoliticalDivision2",
                 "PoliticalDivision1",
                 "PostcodePrimaryLow",
                 "PostcodeExtendedLow",
                 //"Region",
                 "Urbanization",
                 "CountryCode"
             ];
             for (var node: XmlNode in nodes) {
                 for (var i: int in keys) {
                     var value: XmlNode = node.SelectSingleNode(keys[i]);
                     debug.Write(value != null ? value.InnerText + ", " : "");
                 }
                 debug.WriteLine("");
             }
         }
     }
 }

That was a sample Smart Office Script to do address validation for M3 using UPS.

Also, check out the samples for USPS and Eniro and the Mashup.

That’s it! Please comment, follow, share, contribute, and donate your source code. Thank you.

UPDATE: I would like to specially acknowledge the contribution of William Dale at Augusta Sportswear for allowing me to use his UPS and USPS accounts so I can do my tests and write the scripts. Thank you William!

Open source address validation of US addresses for Infor M3

As part of the open source address validation project for Infor M3, I just uploaded to the GitHub repository a sample script for Infor Smart Office to validate an address in the US using the United States Postal Service USPS Web Tools API. I provide the script as proof-of-concept for the interested reader to complete to suit their needs.

USPS Web Tools API

The USPS Web Tools API has the Verify and ZipCodeLookup APIs that validate one or more addresses using XML over HTTP GET:

Sample request/response

Here is a sample XML request and the URL:

https://secure.shippingapis.com/ShippingAPI.dll?API=Verify&XML=…

<AddressValidateRequest USERID="************">
   <Address>
      <FirmName>Ciber</FirmName>
      <Address1>6363 South Fiddlers Green</Address1>
      <Address2></Address2>
      <City>Greenwood Village</City>
      <State>CO</State>
      <Zip5></Zip5>
      <Zip4></Zip4>
   </Address>
</AddressValidateRequest>

Here is the XML response:

<?xml version="1.0" encoding="UTF-8"?>
<AddressValidateResponse>
   <Address>
      <FirmName>CIBER</FirmName>
      <Address1>STE 1400</Address1>
      <Address2>6363 S FIDDLERS GREEN CIR</Address2>
      <City>GREENWOOD VLG</City>
      <State>CO</State>
      <Zip5>80111</Zip5>
      <Zip4>5024</Zip4>
   </Address>
</AddressValidateResponse>

Sample script

Here is the sample script TestUSPS.js in Smart Office:

Here are the resulting XML and HTTP request and response:

That was how to do address validation for M3 in Infor Smart Office for US addresses using USPS Web Tools.

If you like this, please comment, subscribe, share, contribute to the project, donate your code. Thank you.

Workaround to have Google Maps back in Mashups

I found a quick workaround to have Google Maps back into Infor Smart Office Mashups. There are currently three problems with Google Maps in Mashups. I’m using Smart Office 10.1.1.1.5, on Windows 7 Professional 64 bits, with Internet Explorer 11.0.9600.17207.

Problem 1

The first problem is that some time ago Google Maps changed their service and removed the parameter output=embed from the allowed parameters of the URL. The embed output was great as it used to hide the header, footer, and sidebar making it ideal for limited spaces like Mashups; the default output having been classic. With that parameter now disallowed, it causes Google Maps to display the error “The Google Maps Embed API must be used in an iframe” and that happens whether in a browser or in a Mashup, and it even broke the built-in Mashup sample of Mashup Designer:

I haven’t investigated all the details of the problem but I found a workaround. Replace the value embed of the parameter with either of these values: svembed, embedmfe, or svembedmfe. sv seems to be the prefix for Street View. I haven’t yet figured out what the suffix mfe means nor if it will remain long lived.

Here’s a sample result of Google Maps embedded in my browser:

Problem 2

Instead of using the output parameter we could simply use the Google Maps new look which is lean and sexy and also hides the header, footer and sidebar. But unfortunately, the WebBrowser control of Smart Office Mashups sends the HTTP request header Accept: */* instead of Accept: text/html, application/xhtml+xml, */* and that causes Google Maps to respond with HTTP 302 Found redirecting to output=classic and we’re back at problem 1:

Problem 3

The third problem is that Google Maps in a Mashup now throws a JavaScript error popup:

I haven’t yet investigated what causes it. It seems to be caused by the old render mode IE7 that Smart Office uses (although in the past the same render mode wasn’t causing the script error). The workaround is to add a registry key to your Windows to force the render mode to IE11 (and you need to install Internet Explorer 11). You can read more about this in Karin’s post. Microsoft has tools to push registry keys to users computers. Here’s the Windows Registry key I just added on my computer:

Result

After changing to output=svembed, and after adding the Windows Registry key, here’s the result in my Smart Office: the output is correctly embedded, there is no script error, the map works correctly (zoom/pan/etc.), and the Mashup events still work correctly:

That was a quick workaround to get Google Maps back into Mashups. If you know of a simpler solution let me know.

Calling M3 Web Services with SQL adapter in Smart Office Mashup

Once in a while I receive this question of how to call an M3 Web Service (MWS) with SQL adapter in a Mashup for Infor Smart Office. As a reminder, MWS has three adapters: M3 API, M3 Display Program (MDP), and SQL (JDBC). Each will return a different SOAP response, thus each will need a slightly specific XAML. The trick with the SQL response is the new0Collection.

Here is my sample SQL:

SELECT OKCUNO, OKCUNM
FROM MVXJDTA.OCUSMA
WHERE OKCONO=? AND OKSTAT=?

Here is the web service in MWS Designer (note the new0 result set in the output):

Here is the Web service test tool in Smart Office (note the new0Collection):

Here is the resulting Mashup:

And here is the final XAML source code with the new0Collection binding highlighted:

<Grid xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:ui="clr-namespace:Mango.UI.Controls;assembly=Mango.UI" xmlns:mashup="clr-namespace:Mango.UI.Services.Mashup;assembly=Mango.UI">
	<Grid.Resources></Grid.Resources>
	<Grid.ColumnDefinitions>
		<ColumnDefinition Width="*" />
	</Grid.ColumnDefinitions>
	<Grid.RowDefinitions>
		<RowDefinition Height="*" />
		<RowDefinition Height="Auto" />
	</Grid.RowDefinitions>
	<mashup:DataListPanel Name="CustomerList" Grid.Row="0">
		<mashup:DataListPanel.Events>
			<mashup:Events>
				<mashup:Event SourceEventName="Startup" TargetEventName="list" />
			</mashup:Events>
		</mashup:DataListPanel.Events>
		<mashup:DataListPanel.DataService>
			<mashup:DataService Type="WS">
				<mashup:DataService.Operations>
					<mashup:DataOperation Name="list">
						<mashup:DataParameter Key="WS.CredentialSource" Value="Current" />
						<mashup:DataParameter Key="WS.Wsdl" Value="https://host:26108/mws-ws/SIT/TestSQL?wsdl" />
						<mashup:DataParameter Key="WS.Address" Value="https://host:26108/mws-ws/SIT/TestSQL" />
						<mashup:DataParameter Key="WS.Operation" Value="LstCustomers" />
						<mashup:DataParameter Key="WS.Contract" Value="TestSQL" />
						<mashup:DataParameter Key="LstCustomers1.CONO" Value="750" />
						<mashup:DataParameter Key="LstCustomers1.STAT" Value="20" />
					</mashup:DataOperation>
				</mashup:DataService.Operations>
			</mashup:DataService>
		</mashup:DataListPanel.DataService>
		<ListView Name="Customers" ItemsSource="{Binding new0Collection}" Style="{DynamicResource styleListView}" ItemContainerStyle="{DynamicResource styleListViewItem}">
			<ListView.View>
				<GridView ColumnHeaderContainerStyle="{DynamicResource styleGridViewColumnHeader}">
					<GridView.Columns>
						<GridViewColumn Header="Customer" DisplayMemberBinding="{Binding Path=OKCUNO}" />
						<GridViewColumn Header="Name" DisplayMemberBinding="{Binding Path=OKCUNM}" />
					</GridView.Columns>
				</GridView>
			</ListView.View>
		</ListView>
	</mashup:DataListPanel>
	<ui:StatusBar Name="StatusBar" Grid.Row="1" />
</Grid>

That’s it!

Open source address validation of Nordic addresses for Infor M3

As part of the open source address validation project for Infor M3, I just uploaded to the GitHub repository two sample scripts for Infor Smart Office to do address validation in Nordic countries: Sweden (eniro.se), Denmark (krak.dk), and Norway (gulesider.no). I provide the scripts as proof-of-concept for the interested reader to complete to suit their needs.

Eniro Geocode

The script TestEniroGeocode.js uses the Eniro geocode API. This API seems to be best for address validation, and you don’t need an account for it. But it seems to be deprecated, and I was only able to find an old copy of the documentation.

Eniro API

The script TestEniroAPI.js uses the Eniro API. This API seems to be for searching places only, like “restaurants in Stockholm”, and doesn’t seem usable for address validation for M3. Also, you will need an account with Eniro, and you will need to sign in to api.eniro.com to see your account profile, key, and documentation.

Those were two quick proof-of-concepts scripts for Infor Smart Office to illustrate how to use Eniro to do address validation for Infor M3.

That’s it! Please comment, like, share, follow, author, contribute to the project, donate your source code. Thank you.

How to get an item image from Document Archive

Today I will illustrate how to get an item image from Infor Document Archive.

For that, I will use Document Archive Client to add an item image with the item number (ITNO) as an attribute, and I will retrieve the item image using the Document Archive REST API. I will do the illustration with two servers on different version numbers, one server running Document Archive version 10.0.2.4.28 and the other server running version 10.1.0.0.93.

I will later use these steps for my Google Glass project to display in Glass the item image of each picking line.

Document Archive Client in Smart Office

If you have Document Archive installed in your Grid, you will find the Document Archive Client in the Smart Office Navigator widget:

Document Archive web interface

Document Archive has a web interface at /ca/index.html.

Document Archive 10.0.x will simply return the version number:

Document Archive 10.1.x has a much richer web interface with a web client, an admin client, a mobile client, a Ming.le part, management pages, and an API overview:

The path /ca/impl/connection/information will return the API version number:

How to add an item image

To add an item image to Document Archive:

Select Add Document > Item Image
Drop an image file
Set Status to Approved
Enter an Item Number (ITNO)
Click Save

How to search for an item image

To search for an Item Image by item number (ITNO):

Select Attribute Search
Set Document Type to Item Image
Set Attribute to Item Number
Set Operator to =
Enter the item number in Value
Click Search

Document Archive Client will return a list of possible matches, and for each match it will return the image converted into different sizes like original, preview, and thumbnail.

HTTP Requests and query

When I intercept those steps in Fiddler, I see four HTTP Requests, starting with the query:

The server with Document Archive 10.0.x used the query /ESA_ItemImage[@ESA_ItemNumber = “ACME”], and the other server with Document Archive 10.1.x used the query /M3_ITEM_IMAGE[@M3_ITNO = “ACME”]. I’m not fully familiar with how Document Archive is configured, so I don’t know if the query is based on the version number or if somebody did a manual configuration. So check what the query is on your server.

From the query, the server returns a list of matches, and for each match it gives the PID of the document and a list of resources with URLs to the item image in various sizes: original, preview, and thumbnail.

I’m only interested in the original item image, that’s entityName=ICMBASE. The PID would be given by the following XPath on the API response:

//res[entityName='ICMBASE']/pid/text()

Document Archive REST API

Document Archive has a REST API that we can access from http://host:port/ca .

The path /ca/application.wadl will return the Web Application Description Language (WADL) of the API:

Also, Document Archive 10.1.x has a richer API, and a really well polished award-winning documentation and playground:

Search an item image with the REST API

There are several API available to get the item image.

To determine which API accepts query as an input parameter, use the following XPath on the application.wadl:

//param[contains(@name, 'query')]

To determine which API returns binary data (image bytes) as output, use the following XPath:

//representation[contains(@mediaType, 'application/octet-stream')]

By trial and error, I determined I could get the item image in only one request with the following API, the parameter $query properly URL-encoded, and HTTP Basic Authentication:

/ca/api/items/search/item/resource/stream?$query=...

Errors

It wasn’t easy. I ran into a lot of errors which I still don’t understand and which I didn’t fully document. Here are a few bits and pieces I noted:

Unfortunately, the WADL doesn’t mention the input parameter QK_xquery for the searchItems.jsp API, therefore there may be more undocumented API that also accept QK_xquery as an input parameter; to be tested.
In some of my tests the server threw HTTP 401 Unauthorized which led me to believe the user/password was wrong. It turns out the Grid session provider didn’t allow HTTP and only allowed HTTPS. Very misleading error message.
I got a lot of cryptic prolog errors: “Parsing error: Invalid input data: Content is not allowed in prolog. org.xml.sax.SAXParseException”. It seems to be a bug in Document Archive for POST methods and the workaround is to manually change the HTTP Request header to Content-Type: text/plain.
I got a lot of inexplicable java.lang.NullPointerException even with the correct input parameters.
I got a lot of inexplicable HTTP/1.1 500 Internal Server Error even with the correct input parameters.

That was quick overview of how to add an item image by item number (ITNO) in Document Archive, and how to retrieve it with the REST API.

That’s it! Please comment, like, share, follow, enjoy, author. Thank you.

Content-aware re-sizing of M3 programs, and text interpolation

Today I’ll illustrate two usability ideas for Infor M3 – content-aware re-sizing of M3 programs, and text interpolation – to make M3 more usable on high resolution screens.

Synopsis

The M3 user interface was built over 20 years ago for AS/400 and 5250 screens of 73 up to 98 columns and 23 rows, that’s about 0.0022 Mega-characters. The M3 user interface has evolved over the years and has stabilized in Smart Office around the same number of columns and rows as 20 years ago with each cell measuring 10 x 22 pixels at 100% zoom level, that’s about 0.5 Megapixels. It’s about the same for Infor H5 Client.

Meanwhile, screen resolutions and pixel density have continued to increase at an incredible pace. Mobile phones are being produced in China with a horizontal resolution of 3,000 pixels (3K). Televisions are being produced in Japan with a horizontal resolution of 8,000 pixels (8K). And the trend will continue. I even started working on a laptop that has a 3K screen, 3200 x 1800, that’s 5.8 Megapixels or a seven-fold increase in available pixels compared to 1024 x 768. The number of pixels on the surface grows to the square of the linear resolution, for example if we multiply by two the screen resolution on each axis from 1600 x 900 to 3200 x 1800 that’s a four-fold increase in surface.

Despite those technological advances, the M3 user interface hasn’t adapted. Here is a screenshot of Smart Office on my laptop with a screen resolution of 3200 x 1800 pixels, showing CRS610/E sized to 1024 x 768 pixels at the top left corner; the result evidently illustrates how the majority of the space is unused:

There are numerous technical challenges to increasing the number of rows and columns of M3 programs, leading to problems in the database and in legacy source code, but there are several steps we can take in that direction.

Two years ago I illustrated the usability idea how to tile windows in Smart Office. Today, I will illustrate two new ideas: content-aware re-sizing of M3 programs, and text interpolation.

Content-aware re-sizing of M3 programs

The first usability idea is to implement content-aware re-sizing of M3 programs with inspiration from seam carving as introduced by Shai Avidan and Ariel Shamir in 2007. You can watch a demonstration of seam carving in the authors video here. The idea of seam carving is to calculate the energy function of neighboring pixels and remove paths of lowest energy in a way that respects the overall composition of the image. We can manipulate the energy values to keep certain pixels and discard others.

To try seam carving, you can use the Content Aware Scaling feature in Adobe Photoshop, or the Liquid Rescale plugin for Gimp, or the online tool RSIZR.

Here is an example of CRS610/E in RSIZR; I used the preserve and remove brushes to mark in green the important portions of CRS610/E to keep and in red the portions to discard:

Previous known techniques to re-size windows include re-scaling but it causes cropping and scrollbar hell, and re-sizing but it causes the image to be squooshed and minimized. The ideal solution is re-targeting with content-aware re-sizing.

Here is a video of the result using a screenshot of CRS610/E in RSIZR:

It’s not possible to simply implement seam carving to M3 because the rendering of the M3 user interface is based on text and not on pixels. Yet, we can approximate an implementation by choosing which parts of the user interface we want to keep and which parts we can discard. We can do this with a hierarchy of importance. And we can do this programmatically. The new M3 user interface does something similar with the adaptable panel sequence ribbon.

Text interpolation

The second usability idea is text interpolation in M3 programs for text like column headers and labels.

M3 is translated in multiple languages by professional translators. You can read more about it in the two blog posts: Translate M3 with Google Translate API, and Write a Mashup in multiple languages.

The language constants are chosen in different widths to fit the varying space of the target medium. The size ids are: 03, 05, 10, 15, AA, C0, C1, C2, CA, and CF.

The text is retrieved at run-time based on the user’s language settings in MNS150.

The Java source code of each M3 program maps the fields and message identifiers. For example CRS610DSP.java:

static final String[] fieldNames={
"X0RCID","PXFKEY","WWCLIN","WWCPOS","WBOPT2","S0SFH","WWCOLN","WWPSEQ","WOPAVR","WOUPVR",
"WWQTTP","WWNFTR","WWAGGR","WXSLCT","WFSLCT","WTSLCT","WXSLC2","WFSLC2","WTSLC2","WXSLC3",
"WFSLC3","WTSLC3","WXTXT1","WXTXT2","WXTXT3","WXTXT4","WXTXT5","WXTXT6","WXTXT7","WXTXT8",
...
"WRGEOC","WRTECN","WRTEEC","WRTAXC","WTTAXC","WRAGBP","WRAGPY","WRACLB","WRAACB","WRAGCP",
"WRAGAC","WRAGPN","WRAGBG","WRAGPG","WRAGTD","OKAGTN","WRAGCA","WTRTEP","WRRPLT","WRRDIS",
"WRRTEP","WRRSMC","WRAOTP","WTRPLT","WTRDIS","WTRSMC","WTAOTP","PXPDSE","WWSPIC","WWDSEQ",
"WWCFEN","WWTPIC","WWTXVR","WWLNCD"};

static final String[] fieldMessageIds={
null,null,null,null,null,null,null,null,null,null,
null,null,null,null,null,null,null,null,null,null,
null,null,null,null,null,null,null,null,null,null,
...
"WGE10","WTE26",null,"WTA39","WDE03","WAGB0","WAG69","WAC95","WAACB","WAG78",
"WAG70","WAG73","WAG77","WAG76",null,"WAG75","WAG72","WDE03","WRPLT","WRDIS",
"WRTEP","WRSMC","WAT90",null,null,"WDE03",null,null,null,null,
null,null,null,null};

For example, here are the identifiers of some common fields in CRS610:

Customer name – CUNM: WNA01
Customer number – CUNO: WCU02
Telephone number 1 – PHNO: WPH01

We can get the values in a Smart Office script with:

function ... {
    var list: ArrayList = new ArrayList();
    list.Add(new TranslationItem(messageId + width, "MVXCON"));
    TranslationService.Current.Translate(list, OnTranslation, "GB");
}
function OnTranslation(items: IEnumerable) {
    for (var item: TranslationItem in items) {
        if (!String.IsNullOrEmpty(item.Text)) {
            if (item.Text != item.Key) {
                debug.WriteLine('Translated ' + item.Key + ' to ' + item.Text);
            } else {
                debug.WriteLine('Key ' + item.Key + ' not found in file ' + item.File);
            }
        } else {
            debug.WriteLine('item.Text is null or empty');
        }
    }
}

That calls the Net Extension command TRANSLATE.

The result would be for example:

PHNO[WPH0103]=Tl1
PHNO[WPH0105]=Tel 1
PHNO[WPH0110]=Tel no 1
PHNO[WPH0115]=Telephone no 1
PHNO[WPH01AA]=telephone number 1

We can then interpolate the resulting Strings, for example my simple algorithm returns:


Tl1
Tel1
Tel 1
Tel n1
Tel nb1
Tel nb 1
Tele nb 1
Telep nb 1
Teleph nb 1
Telepho nb 1
Telephon nb 1
Telephone nb 1
Telephone nub 1
Telephone numb 1
Telephone numbe 1
Telephone number 1

Here’s the simple algorithm I used for that:

/*
    Returns the specified headers interpolated one character at a time, first ocurrence of any different character, from left-to-right.
*/
function interpolate(headers) {
    var interpolated = new ArrayList();
    var str1;
    var str2;
    for (var i = 0; i < headers.length - 1; i++) {
        str1 = headers[i];
        str2 = headers[i + 1];
        interpolated.Add(str1);
        for (var j = 0; j < (str2.length - 1) && str1 != str2; j++) {
            if (j < str1.length) {
                if (str1[j] != str2[j]) {
                    // the character at this position of str2 doesn't exist in str1, add it to str1
                    str1 = str1.Insert(j, str2[j]);
                    interpolated.Add(str1);
                }
            } else {
                // we reached the tail of str1, add the tail of str2 to str1
                str1 = str1.Insert(j, str2[j]);
                interpolated.Add(str1);
            }
        }
    }
    interpolated.Add(str2);
    return interpolated;
}

It turns out the algorithm is not that simple to implement as not all the language constants in M3 can be automatically interpolated, for example the abbreviation no (letter O) would have to be specially interpolated to number (no letter O).

Here is a resulting video of column header interpolation in CRS610/B; I manually sanitized the interpolated Strings and added the field name in parenthesis:

Summary

In this post I illustrated two usability ideas – content-aware re-sizing of M3 programs, and text interpolation – to benefit from the technological advances in ever higher resolution screens and to improve the M3 user interface. This would be specially ideal for large Mashups.

That’s it! If you liked this post, please click the Follow button to subscribe to this blog, leave your comments in the section below, click Like, and share with your peers.

Third part of international phone number parsing, validation and formatting for Smart Office

I just completed implementing international phone number parsing, validation and formatting for Accounts in Infor Customer Lifecycle Management (CLM) in Infor Smart Office. This complements my previous work on international phone number parsing, validation and formatting for M3 MForms like CRS610/E.

To implement the solution I used libphonenumber (C#), the known C# port of “Google’s phone number handling library, powering Android and more”, I used the Infor Smart Office SDK, and I did a lot of hacking CLM.

Here is the result for an invalid phone number:

Here is a phone number entered in various non-normalized formats before saving the Account:

Here are the resulting normalized phone numbers after having saved the Account:

Here is a video of the result (watch in full-screen HD for better viewing):

This solution works for saving new accounts and for updating existing accounts. From a development point of view, I had to respectively handle the event OnEntityBeforeSave for a modal dialog box and the event OnEntityBeforeUpdate for a dashboard task.

Note this solution will only apply to the CLM user interface in Smart Office and not to other CLM user interfaces like CLM Web client, it will not apply retro-actively to phone numbers previously stored in the database, and it will not apply to phone numbers eventually synchronized in the background server-to-server from other sources like CRS610; those scenarios would need to be handled separately.

That’s it! If you like it, click the Follow button below to subscribe to this blog, let me know what you think in the comments below, and spread the word.
